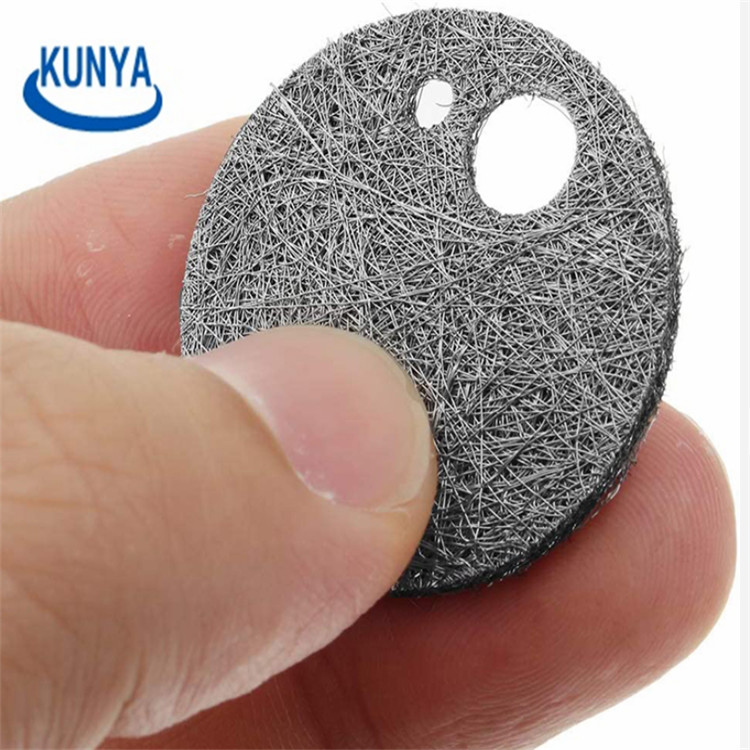

20 Micron Ss316l Sintered Fiber Felt For Chemical Industry

Name: 20 Micron Ss316l Sintered Fiber Felt For Chemical Industry
Brand: KUNYA
Price: 1 USD

Wholesale 20 Micron Ss316l Sintered Fiber Felt For Chemical Industry from china suppliers

Brand Name : KUNYA

Model Number : KYF0713

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 165200 Pieces per month

Delivery Time : 15-25 days

Packaging Details : wooden case

Product name : Sintered Disk Filter

Filter rating : 0.2um-500um

Shape : Customers' Request

Thickness : 1-5mm

Color : stainless steel, bronze

Application : Building Material Shops, Machinery Repair Shops, Energy

Working temperture : -200℃-600℃

Material : Stainless steel, Titanium,Bronze

Advantage : long life span

Type : Filter Cylinder, Filter element

microns filter disk : Sintering Stainless Steel Filter Disk

Feature : Excellent Filtration

Contact Now

20 Micron Ss316l Stainless Steel Sintered Fiber Felt Filter Disc Mesh For Chemical Industry

Sintered Filter Disk Introductions

Type	Nominal Filter rating (um)	Absolute rating 98%( um)	Mean B.P.P (pa)	Resistance Coeffient 105	Porosity (%)	Weight (kg/m2)	Thickness (mm)	Tensile strength (kgf/mm2)
5KW5	2	8~9	5000~ 6000	14	30~38	8.4~9.1	1.6~1.7	11~13
10KW5	5	12~14	3300~ 3700	12
15KW5	10	16~18	2800~ 3000	7
20KW5	20	28~32	1800~ 1900	4
30KW5	25	35~45	1300~ 1500	4
50KW5	40	58~63	1000~ 1300	4
75KW5	75		700~ 900	2
100KW5	100		500~ 700	2

Sintered Filter Disk Elements can be made into tube type and plate type. Because of the good permeability, filter fitness and high stock utilization, they are widely used in medical industry, chemical industry, metallurgical industry and field of gas purification.

Sintered Filter Disk Types

Name	Filter rating 5-70um sintered powder porosity tube metal filter
Production		Diameter (Width)	Thickness	Customized
Sintered porous round discs	φ5-φ400mm	φ5-φ400mm	1-20mm	Yes
Sintered porous sheets	5-600mm	5-400mm	1-20mm	Yes
Sintered porous tubes	100-1200mm	φ20-φ200mm	1-10mm	Yes
Sintered porous cartridge	100-1200mm	φ20-φ200mm	1-10mm	Yes

Sintered Filter Disk Characteristics:

1. Shape stability, shock resistance and alternating load capacity superior to other metal materials;

2. Air permeability, stability of separation effect;

3. Excellent unloading strength, suitable for use in high temperature, high pressure and strong corrosive environment;

4. Especially suitable for high-temperature gas filtration;

5. Can be customized according to user requirements of various shapes and precision products, can also be welded to use a variety of interfaces.

20 Micron Ss316l Sintered Fiber Felt For Chemical Industry

Stainless Steel Powder sintered filter is made of stainless steel powder by mould pressing, high-temperature sintered and forming. With high mechanical strength, high temperature, good corrosion resistance, uniform aperture distribution, good permeability, can be cleaned and recycled, welding machine, such as mechanical processing. Widely used in the recovery of catalysts, chemical, pharmaceutical, beverage, food, metallurgy, petroleum, environmental protection and other fields of gas and liquid filtration and separation; all kinds of gas, steam dust removal, bacteria removal, oil mist, silencing, flame resistance, gas buffer, etc.

Porosity: 28%-50%

Aperture: 4um-160um

Filtration accuracy: 0.2um-100um

20 Micron Ss316l Sintered Fiber Felt For Chemical Industry
